T-Bus connector
- Model: CM01
- Introduction: If interested in our products,you can contact us through MSN or Email, guodajiang@vip.sina.com
- Sevice:
(sonbest@live.cn) Email:sale@sonbest.com
Pyroelectric infrared sensors, infrared sensors found by the Shanghai Industrial Co., Ltd. Bo independent research and development production, sales hotline :021-51083595, batch users, please contact 021-61374977, you can enjoy more benefits
T型总线连接器4支线输出

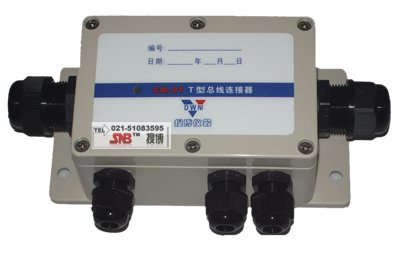

T型总线连接器3支线输出
T型总线连接器2支线输出

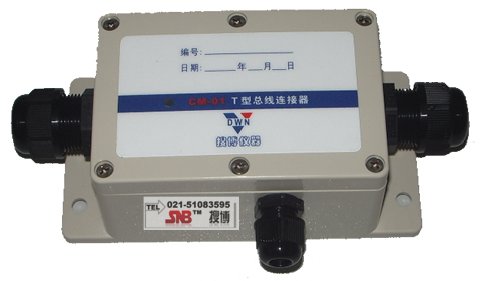

T型总线连接器1支线输出
CM01 is in engineering practice, to respond to the needs of the actual project development, for connecting field bus cables and modules for on-site collection services, power supply and communication media. According to the different needs of field installation, T-type bus terminal connector extension with extension exports ranging from 0-4 months. Specific site selection need to be connected according to the temperature acquisition module to set the amount, when connected with 0 extension exports, that is used as a junction box termination. T-bus connector on the RS485 bus in frequent, CAN (CanOpen) bus, the bus can also be used for HART, Foundation Fieldbus, Profibus bus, LonWorks bus and other bus system for the bus connection.
The standard T-connectors on both sides of the waterproof connector can be fastened PGA16 10.3-14mm diameter of the bus cable. The following interfaces can be accessed by this PGA7 between 4.5-8mm cable. Waterproof plug-ins can also be matching the thickness of cable according to the user. Installation of field measurement points required to select the location of T-box placement. T models require intensive use, select the cellular output.
Applications
1, RS485 bus 2, CAN (CanOpen) Bus 3, HART bus 4, Foundation Fieldbus
5, Profibus bus 6, LonWorks bus 7, and other occasions to be connected to the bus cable
Technical parameters
接线示意图
引脚定义

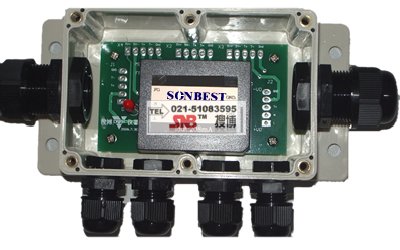

CM01带电源内部照片
.
