The process of beer production-line monitoring system is in response to the production line of beer in the process of beer production-line monitoring of temperature and humidity designed a system. Basic to the RS485 or CAN bus network structure, can achieve long-distance line monitoring, the system The most long-distance monitoring of up to 5km. For the convenience of users secondary development of our products can provide equipment communication protocols,

     Due to user needs will vary depending on the application of different state, I Secretary customized according to user requirements are welcome to inquire!

     Combination products seized by the Shanghai Bo Industrial Co., Ltd. (official website: www.sonbest.com) production and manufacturing, to learn more or need technical support, can call :021-51083595

Network structure:

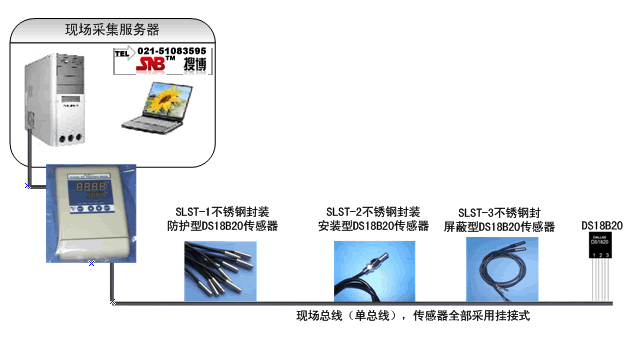

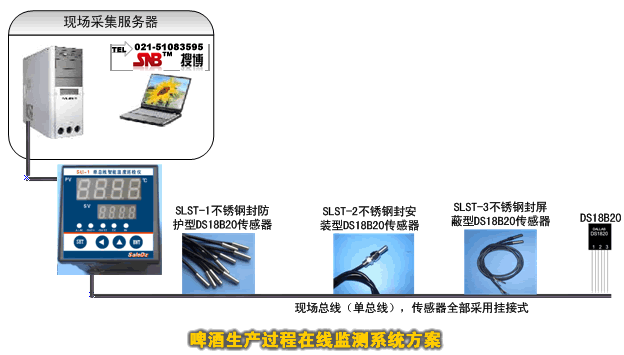

      For small systems, only detect the temperature 24 below the demand for stand-alone programs can meet the requirements, the following for the stand-alone programs:

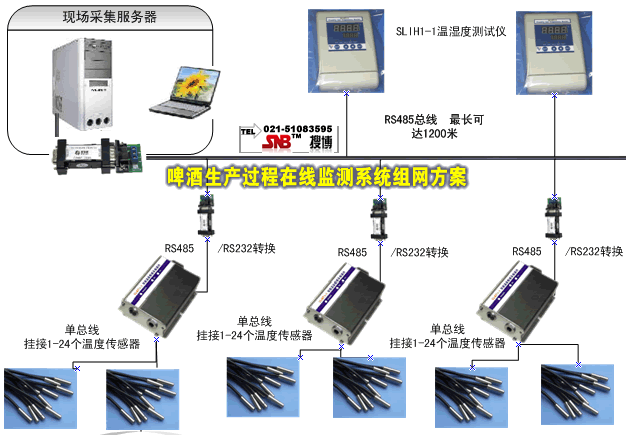

If the actual temperature monitoring system to be more points, to be used in network programs, the next picture shows the RS485 network model, collection terminal distance service up to 1200 meters, each acquisition module can take 1-24 months temperature collection point.

The program applies to

         1. The need for temperature or humidity and temperature monitoring the demand for long-term focus

         2. Canopy temperature-line monitoring, IDC room temperature-line monitoring, beer production in the process of temperature monitoring and other needs of real-time monitoring of temperature and humidity occasions.

Program features:

  1. Simple structure, simple wiring. Sensor bus using four-wire system, you can choose SHT series of temperature and humidity sensors.

  2. With communication interface, can connect directly with the computer. RS232 interface module own

  3. May be a wall installation, also can be placed



Program parameters:

  1. Power Supply: 5V 1A

  2. Sensors detect temperature range: -55-125 degrees, measurement accuracy: 0.5 degrees

  3. Module which can be accessed by sensors 1-24

  4. Farthest distance detection :100-150 meters (articulated by several sensors and cables vary)

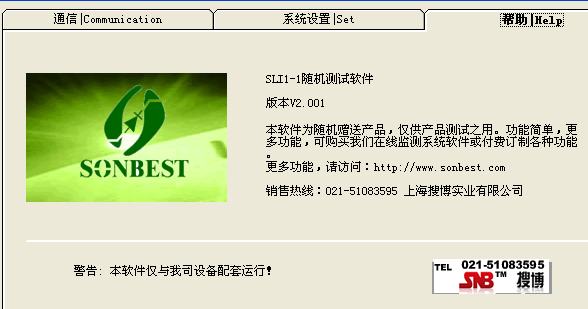

The software for the random free software, is not sold separately.

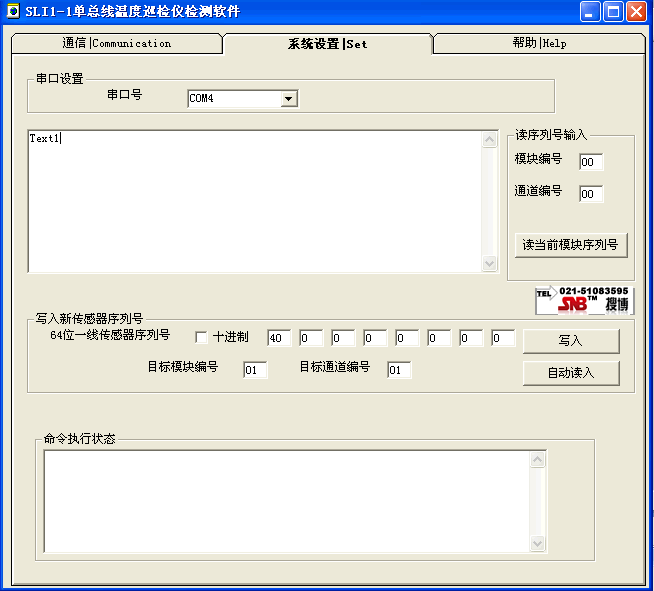

               Software basic functions:

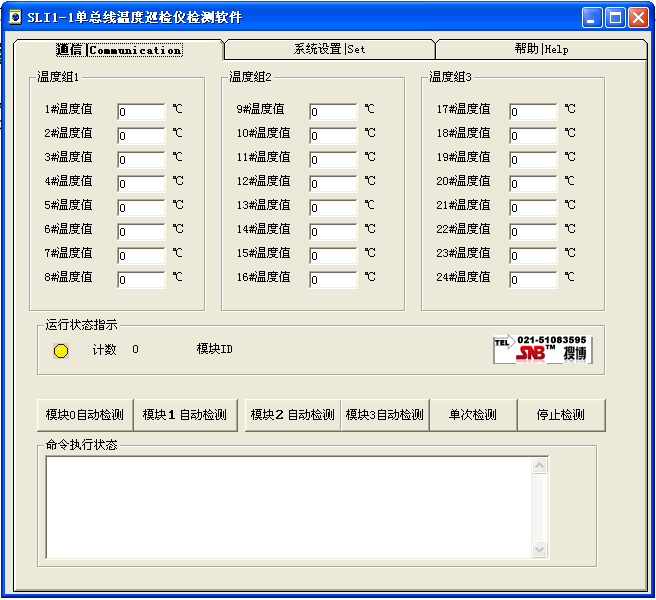

1. Real-time display of 24-point temperature

2. Can be communication port settings

3. Can be online to read out the sensor 64 serial number

4. Can be written into the sensor serial number online

5. Can modify equipment online node number (Group network to facilitate the use of special)

6. Separate command window, user-friendly development and ordered the second test

The process of beer production-line monitoring system is in response to the production line of beer in the process of beer production-line monitoring of temperature and humidity designed a system. Basic to the RS485 or CAN bus network structure, can achieve long-distance line monitoring, the system The most long-distance monitoring of up to 5km. For the convenience of users secondary development of our products can provide equipment communication protocols,

       Due to user needs will vary depending on the application of different state, I Secretary customized according to user requirements are welcome to inquire!

       Random donated software, such as described above shows, the secondary development of user-friendly and simple temperature real-time detection showed that non-curve and storage features, For professional online monitoring system, with our sales department to sell to buy.

Following is a project for a brewery examples:

In December 2007, Jiangsu Division I buy a brewery equipment are as follows:

      SLIT1-1 / 6 data logging devices 5

      SLIT2 single bus temperature measured Tester 1

      70 SLST1-1 stainless steel digital temperature sensor package

      6 RS485 network module

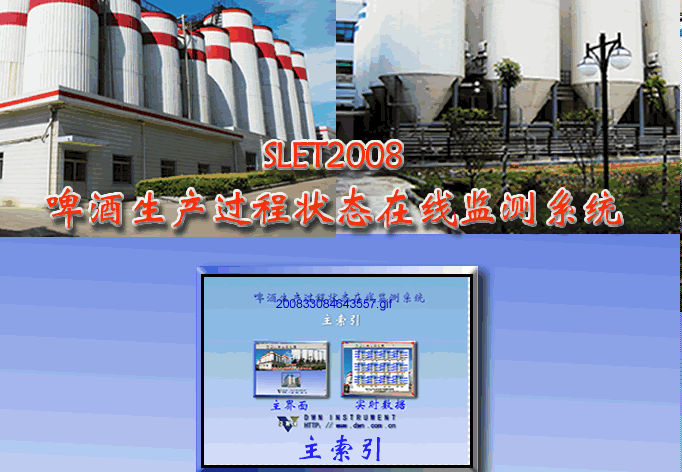

      SLET-2 beer production-line monitoring system software

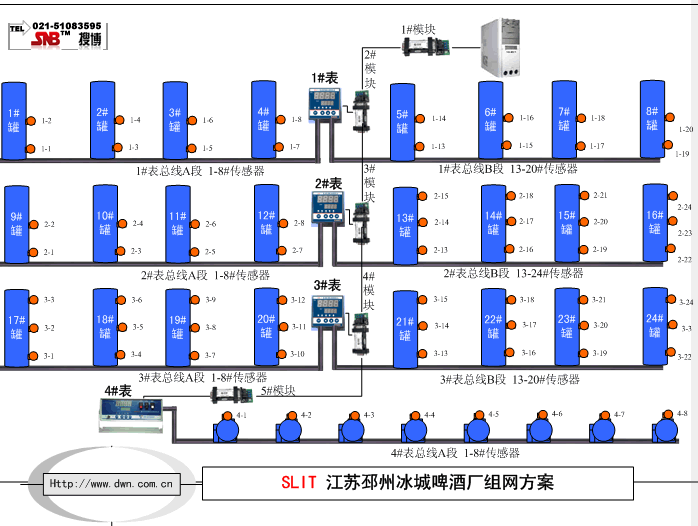

      Million or less in the low-cost production line under the formation of the production process of beer-line monitoring systems, and has normal operation so far, the following is the factory system topology diagram:

The plant matching program: the temperature and humidity and temperature detection network programs SLTC2000-3

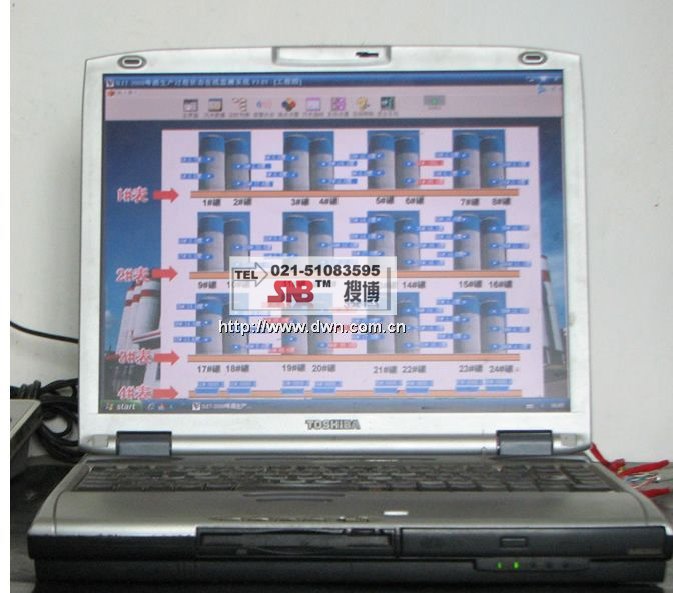

  Since the production of 24 production tanks, each tank deployed three temperature sensors, the system spent a total of four 24-point temperature data logging devices to a network, each data logging devices which can be accessed by 24-point temperature, single-bus farthest distance of 120 meters. To save costs, the scene did not use a network server, directly through RS485 data acquisition modules to the host computer to focus on the collection, monitoring, curve analysis.

     The system provided by the Division I program, the user on its own network, for non-peer networking capabilities, I am the Secretary may also provide on-site network services, For custom system can contact us to carry out the works ordered hotline: 021 -- 51083595

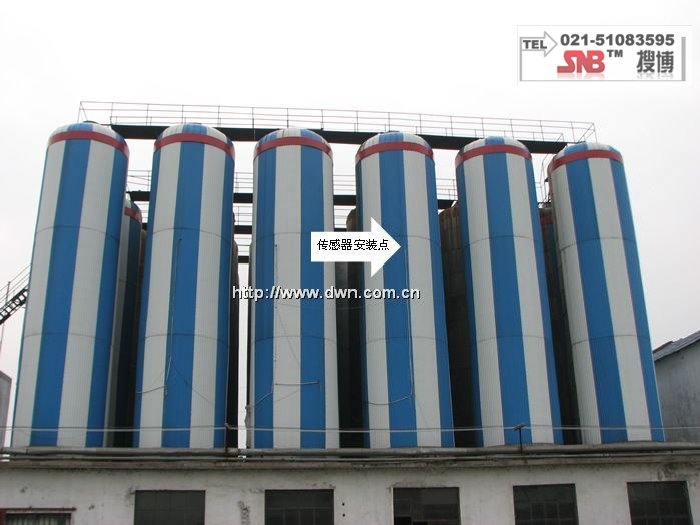

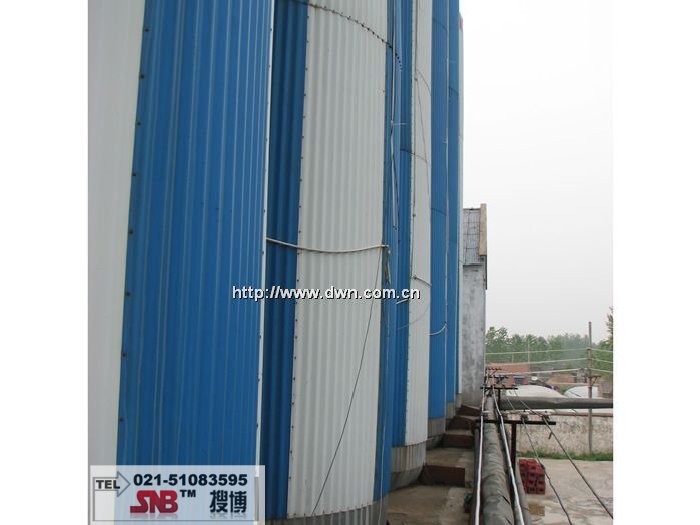

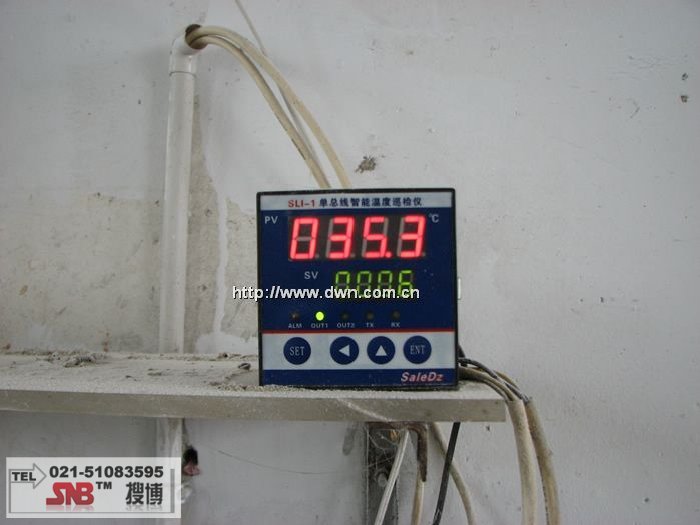

    The following is a user-site diagram:
