Wall-type temperature online monitoring system
- Model: SLTC2000-1
- Introduction: No Memo
- Sevice:
(sonbest@live.cn) Email:sale@sonbest.com
To let our user easy to learn our products, we introduced a combination of several sets of economic package, our user can select their own configuration options.
Combination packages for economic packages, package products seized by SONBEST Co., Ltd. (official website: www.sonbest.com) production and manufacturing, to learn more or need technical support, can call :086 021 51083595 or MSN:sonbest@live.cn
Program configurations:
Program configurations:
| ID | Configuration List | Price
(USD) |
Measuring Precision |
|
SLTC2000-1 |
1. Temperature Display (SLIH1-1 / 1),Quantity: 1 2. Industrial-type digital temperature sensor (model: SLST1-1), Quantity:1 (The installation type, shielded optional) 3. System test software ,Quantity:1 4. Monolithic power supply (5V 1A) Quantity:1 |
580 | 0.5 |
| SLTC2000-2 | 1. Temperature Display (SLIH1-1/6 ich can be accessed by six temperature sensor) Quantity: 1
2. Industrial-type digital temperature sensor (model: SLST1-1) Quantity: 6 3. System Test Software 4. Monolithic Power |
980 | 0.5 |
| SLTC2000-3 |

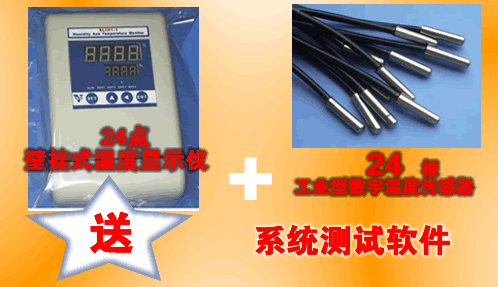

1. Wall-mounted temperature display instrument (Model: SLIH1-1/24 which can be accessed by 24 temperature sensors) Quantity: 1 2. Industrial-type digital temperature sensor (model: SLST1-1) Quantity:24 (the installation type, shielded optional) 3. System Test Software 4. Monolithic Power |
1980 | 0.5 |
The program applies to
1. To be hung on the walls of the long-term focus on temperature monitoring demand
2. Canopy temperature-line monitoring, IDC room temperature-line monitoring, beer production in the process of temperature monitoring and other needs of real-time monitoring the temperature of the occasion.
Program features:
1. Simple structure, simple wiring. Sensor bus by three-wire system, all sensors can be mounted directly on the bus.
2. With communication interface, can connect directly with the computer. RS232 interface module own
3. May be a wall installation, also can be placed
4.24 Road Tour show
Program parameters:
1. Power Supply: 5V 1A
2. Sensors detect temperature range: -55-125 degrees, measurement accuracy: 0.5 degrees
3. Module which can be accessed by 24 sensor
4. Farthest Detection Distance: 100 meters
1. To be hung on the walls of the long-term focus on temperature monitoring demand
2. Canopy temperature-line monitoring, IDC room temperature-line monitoring, beer production in the process of temperature monitoring and other needs of real-time monitoring the temperature of the occasion.
Program features:
1. Simple structure, simple wiring. Sensor bus by three-wire system, all sensors can be mounted directly on the bus.
2. With communication interface, can connect directly with the computer. RS232 interface module own
3. May be a wall installation, also can be placed
4.24 Road Tour show
Program parameters:
1. Power Supply: 5V 1A
2. Sensors detect temperature range: -55-125 degrees, measurement accuracy: 0.5 degrees
3. Module which can be accessed by 24 sensor
4. Farthest Detection Distance: 100 meters
Program shortcomings:
1. Must be consistent with a computer connected to the data can be collected. Module has no display.
2. Farthest distance communication limited to 100 meters, the long-distance communications, the need to adopt multi-module network program
Software included:
Software basic functions:
1. Real-time display of 24-point temperature
2. Can be communication port settings
3. Can be online to read out the sensor 64 serial number
4. Can be written into the sensor serial number online
5. Can modify equipment online node number (Group network to facilitate the use of special)
6. Separate command window, user-friendly development and ordered the second test
1. Must be consistent with a computer connected to the data can be collected. Module has no display.
2. Farthest distance communication limited to 100 meters, the long-distance communications, the need to adopt multi-module network program
Software included:
Software basic functions:
1. Real-time display of 24-point temperature
2. Can be communication port settings
3. Can be online to read out the sensor 64 serial number
4. Can be written into the sensor serial number online
5. Can modify equipment online node number (Group network to facilitate the use of special)
6. Separate command window, user-friendly development and ordered the second test
