Metal protection, more than 5-micron dust can not enter the four-connector design, installation convenience

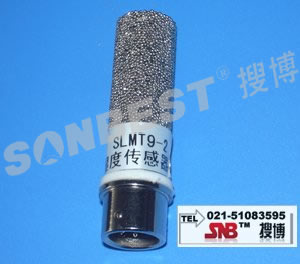

SLMT9-1 temperature and humidity sensor integration is to achieve a state of low-cost online monitoring of temperature and humidity of practical sensors, can be widely used in real-time monitoring of temperature and humidity data acquisition of a variety of applications.

     Several major characteristics:

     Convenient and flexible network: Each sensor has an ID number, the ID number to remote on-line changes

     Easy to read and write data: one command can be¶Á³öÊý¾Ý

    Own interface: CAN bus, CAN system can be accessed directly

    Expansion interface: CAN it be able to work outside the 1000 meters

    High accuracy, calibration-free: all-digital collection, the problem will not be collected due to the distance the signal is not accurate

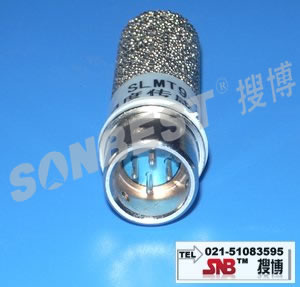

    Four-connector design, installation convenience

    Metal protection, more than 5-micron dust can not enter


      As a traditional system, the ideal temperature and humidity alternatives, their small size, calibration-free, convenient features such as networking. With the CAN field bus module, will be scattered in different parts of the sensor nodes via a wired or wireless way to link up with the monitoring center to reduce power consumption, and promote the purpose of safe production.
This module can be (1) SMT industry to monitor temperature and humidity data (2) Electronic Equipment Factory data monitoring temperature and humidity (3) cold storage temperature and humidity monitoring (4) storage temperature and humidity monitoring (5) pharmaceutical GMP monitoring system (6) Environment temperature and humidity monitoring (7) telecommunications room temperature and humidity monitoring (8) Other requirements for monitoring of temperature and humidity and so on various occasions.
In order to facilitate the use of project network, the module provides the secondary development of the communication protocol to support the secondary development. Users only need to according to our protocol can use any serial communications software module queries the data and settings.

Second, technical parameters and characteristics of

Parameter values
Shows that temperature range -40 ¡æ ~ +123.8 ¡æ
Temperature measurement accuracy of 0.5 ¡æ
Measurements show that the scope of 0 ~ 100RH wet
Wet test the accuracy of ± 4.5% RH
Response time <8S
Channel number of two-channel, a channel temperature and humidity of a channel
19200 baud rate (baud rate can be customized to other)
CAN communication ports
DC 5V 1A power supply
2W power consumption
Weight 300 grams
Storage temperature -40 - 85 ¡æ
Operating Environment: -40 - 85 ¡æ -40 ¡æ ~ +85 ¡æ
Dimensions: diameter: 18mm, length 30mm

Matching MODUBS sensors can be directly connected with the use of networking software configuration
Applications

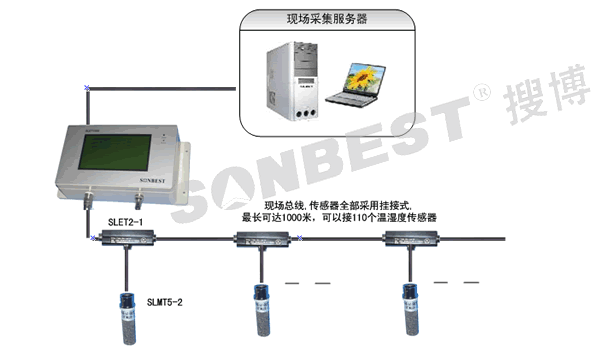

CAN network program

Data Acquisition SLET1000 server system management as a CAN in New Zealand, responsible for communications with the sensors and data acquisition with PC communication software. CAN Bus×éÍø·½Ê½, communication distance can be extended to 6000 meters up, can effectively resolve the most simple to connect the issue of distance is too short.
    SLMT9 sensors under the plan of the structure of network, each sensor node has a number, a small system that can place up to 110 sensors SLMT. SLMT9 access protocol for users to free use of secondary development.
