Features and Characteristics

 Professional metal pad mode technology
 professionally high temperature and low temperature test
 can be customized according to user needs
  "First-line bus" wiring to facilitate easy
 anti-interference ability
 good thermal conductivity, fast response
 can be used in a variety of harsh environments

       Surface Mount Temperature sensors are suitable for glass, walls and other flat temperature requirements, special requirements, you can customize.


 This product processing technology and test and SLST1-1 is the same:

1. Professional metal pad mode technology

    Thermal conductivity of plastic commonly used in the market process is not due to poor thermal conductivity and can not achieve rapid sensing. Our sensors, sensing in part by the metal pad between the shell mold seamless. Metal die pad by a professional mold shape according to the sensor Size processed. Metal is the best heat conductors. 20 yuan on the market the following sensors are based on the filler, or lead filled plastic pads.

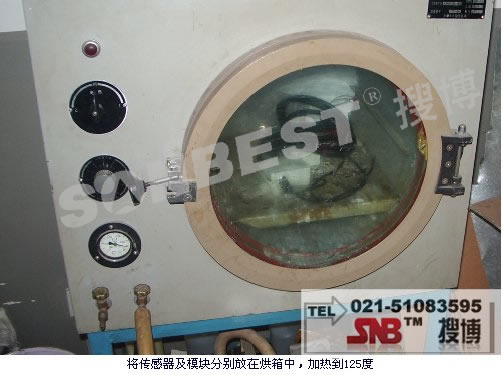

2. After a professional test and temperature test

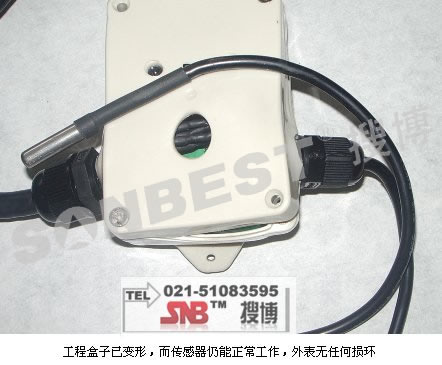

     Work in harsh environments, requires a lot of tests, only through professional testing products have high reliability. Our sensors can work in the long-term high-temperature environment of 120 degrees; also can operate at minus 40 degrees of the environment.

  220kV cables in the surface of normal work

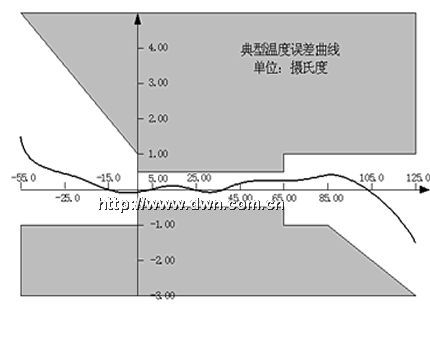

                               Sensor temperature measurement error curve

        SLST1 family of digital temperature sensor with the United States Dallas Semiconductor digital temperature sensor DS18B20, sensors stainless steel enclosure, waterproof moisture. Transducers specially designed stainless steel shell, the wall thickness of only 0.15mm, with a small build, heat, metal pads mold process to DS18B20 and stainless steel wall full access to while using a high thermal conductivity potting sealant to ensure a temperature sensor The high sensitivity, minimum temperature of delay.
SLST1 temperature sensor support "first-line bus" interface (1-Wire), measurement temperature range of -55 ° C ~ +125 ° C, at -10 ~ +85 ° C, within an accuracy of ± 0.5 ° C. Temperature directly to the scene, "bus line" digital mode transmission, greatly improved the system interference. Suited to the harsh environment of the scene temperature measurement. SLST1 digital temperature sensor has a unique number, the temperature acquisition device through the numbers to identify the corresponding temperature sensors. Sensor lead length can be customized according to user needs, lead-specific sensors using three-core wire, a length of 1 meter factory.
Typical Applications:
1, cold storage temperature monitoring 2, 3 pharmaceutical GMP monitoring systems, telecommunications room monitor 4, beer production
5, building self-control 6, 7 storage temperature monitoring, environmental monitoring, 8, the process temperature monitoring 9, air-conditioning monitoring
Overall dimensions: sensor uses all stainless steel shell packages, please note icon when using shaded areas for the heat-sensitive sensor. Has length of 25mm, 30mm two kinds of specifications, lead lengths can be customized to a maximum of 100mm

Pin Definition
  Red --- VCC power supply positive, then the positive 5V DC
  Blue --- DQ signal pin
  Black --- GND power supply negative, then negative DC 5V

Specifications
