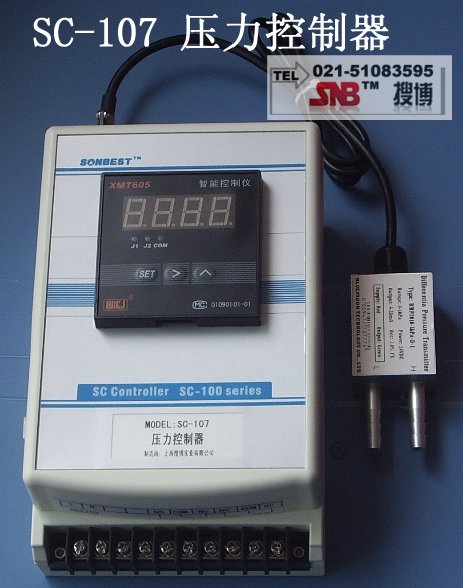

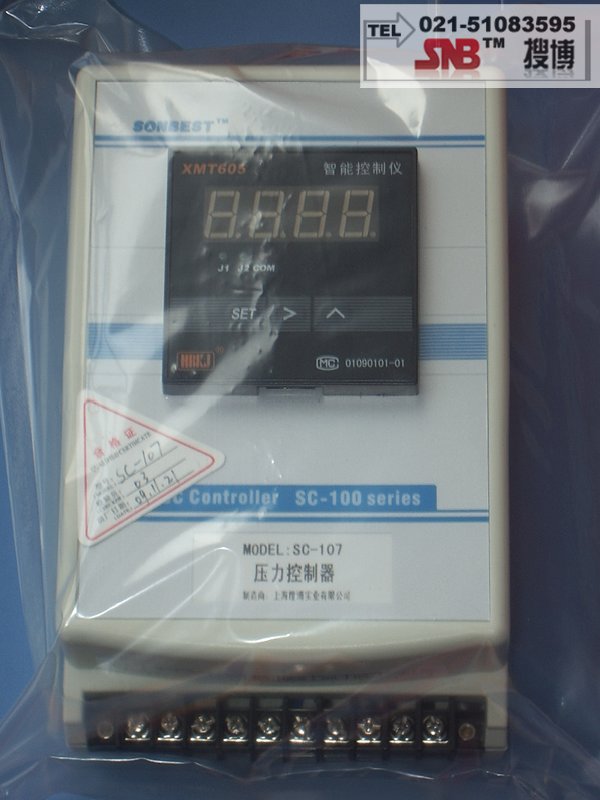

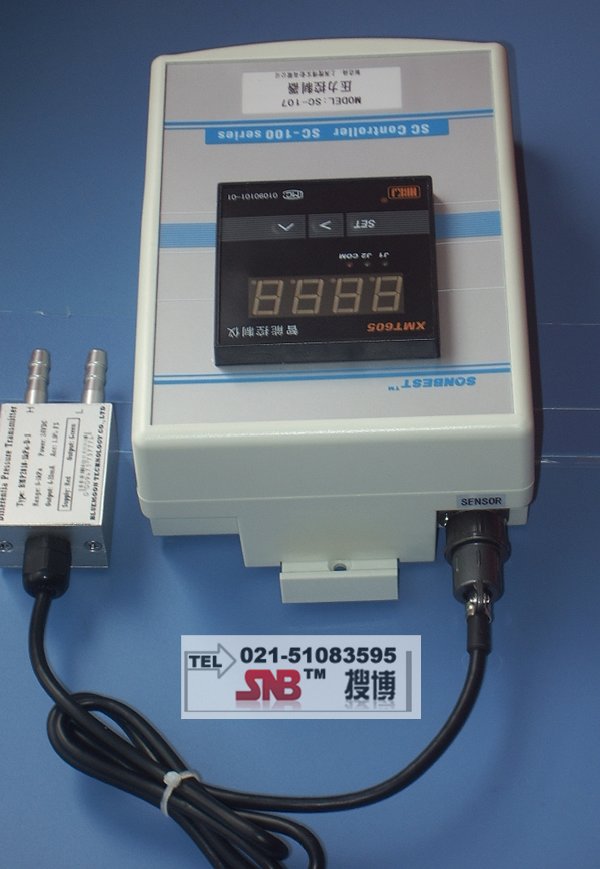

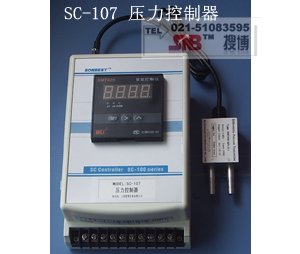

Pressure controller | Differential Pressure Controller SC-107 | Pressure Controller SC107
- Model: SC-107
- Introduction: No Memo
- Sevice:
(sonbest@live.cn) Email:sale@sonbest.com
Overview
Pressure controller compact machine can provide fast, accurate digital readout. Is an independent pressure sensor easy to replace the operation.
Features
A pressure sensor, easy to operate
2 small machines can provide fast, accurate digital readings, and independent probe to make measurements easier.
3 volume range: -1.0 thousand to the positive and negative pressure to show 1000pa
4 bright LED display, in the light environment can be clearly shown reading, easy to use.
5 meter waterproof panel
6 rubber buttons are buttons used to prevent corrosion.
7 of durable and lasting material, also used a strong shell and lightweight ABS plastic.
8 alarm control output function
Technical parameters:
Pressure controller compact machine can provide fast, accurate digital readout. Is an independent pressure sensor easy to replace the operation.
Features
A pressure sensor, easy to operate
2 small machines can provide fast, accurate digital readings, and independent probe to make measurements easier.
3 volume range: -1.0 thousand to the positive and negative pressure to show 1000pa
4 bright LED display, in the light environment can be clearly shown reading, easy to use.
5 meter waterproof panel
6 rubber buttons are buttons used to prevent corrosion.
7 of durable and lasting material, also used a strong shell and lightweight ABS plastic.
8 alarm control output function
Technical parameters:
|
Show |
LED Display |
|
Range |
-10Mpa 10Mpa can be customized upon request |
|
definition |
±0.5% |
|
Sampling time |
Sampling time is about 0.4 seconds |
|
Host size |
127 × 197 × 80mm ³ mm (7.9 × 2.7 × 1.2 inches) |
|
Electrode size |
Cross-sectional diameter of 22 mm × 120 mm length |
|
Output |
Contact Capacity：3A AC220V |
|
Power Supply |
AC220V |
|
Power |
About 200mA |
|
Weight |
1000g |
|
Storage temperature |
-20 ～80℃ |
|
Runtime： |
-40℃～+85℃ |
Order and Selection
Product Name Product Model (Order number) Description
Pressure Controller SC-107
Random Listing
No. Name Type Quantity Remarks
A pressure controller SC-107 S1 Block
3 copies of a manual
