Intelligent Temperature Data Acquisition Module(RS232)
- Model: SY1000-14
- Introduction: If interested in our products,you can contact us through MSN or Email, guodajiang@vip.sina.com
- Sevice:
(sonbest@live.cn) Email:sale@sonbest.com

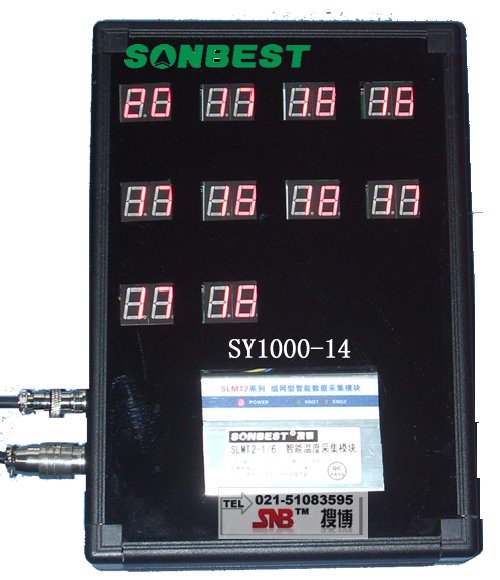

Icon is a customized 10-channel, two digital tube display monitor concentration of vegetable greenhouses temperatures.
Features:
1. Bus system, sensor interface and support lengths up to 300-500 meters
2. 1-32 can show a temperature data, each data with the four digital tube display, specific channels can be ordered
3. The whole appearance of the size and digital tube size can be customized according to user needs
4. Thickness of only 5mm, can be directly installed on the wall display.
5. With a RS485 or CAN bus interface can also be optional wireless interface, network to facilitate
6. Can simultaneously display data on a computer, random distribution software.
1. Bus system, sensor interface and support lengths up to 300-500 meters
2. 1-32 can show a temperature data, each data with the four digital tube display, specific channels can be ordered
3. The whole appearance of the size and digital tube size can be customized according to user needs
4. Thickness of only 5mm, can be directly installed on the wall display.
5. With a RS485 or CAN bus interface can also be optional wireless interface, network to facilitate
6. Can simultaneously display data on a computer, random distribution software.
SY1000 Series LED temperature indicator concentration, with the U.S. DALLAS line fieldbus technology to realize low-cost temperature state on-line monitoring program for practical networking modules, can be widely used in real-time temperature monitoring of a variety of data acquisition applications.
SY1000 Series LED temperature display instrument can be focused on digital temperature sensor DS1820 series of products for temperature data collection, display, data transfer, so that the temperature circuit detection system for high reliability, low cost and simple wiring structure. Temperature measurement system as the ideal alternative to traditional products, he has a small size, measuring point and more flexible networking, and so on. With wireless devices or GPRS modules and on-site single-bus transfer (1-wire) technology, can be scattered in different parts of the node module SLMT1 way through wired or wireless link with the monitoring center, to reduce energy consumption, the purpose of promoting safety in production .
SY1000 Series LED temperature display instrument can be used to focus the diverse needs of centralized monitoring and control of sites, including: (1) SMT industrial temperature data monitoring (2) Electronic Equipment Factory temperature data monitoring (3) cold storage temperature monitoring (4) Storage Temperature Monitoring (5) The pharmaceutical GMP monitoring system (6) Environmental temperature monitor (7) Telecommunications room monitoring (8) Power Plant / Power Unit (9) Power Plant / Power Unit (10) Process Temperature Monitoring (11) beer production process temperature detection (12) vegetable greenhouses temperature centralized monitoring display system.
In order to facilitate networking project to use, this module provides secondary development of communication protocols to support secondary development. Users simply according to our protocol can use any serial communications software
Technical parameters and characteristics of
Support sensor SLST1 series of temperature sensors, DS1820, DS18B20, DS18S20, DS1822
Display temperature range of -25 ℃ ~ +125 ℃
Display Resolution 0.1 ℃
Temperature measurement accuracy 0.5 ℃
Measuring the speed 850ms / point of all: 2S
Single-bus channels can be accessed by 1-32 points (see ordering and Notes)
Showing 1-100 a real-time display the same screen measuring points, specific points can not display the custom
9600 baud (can be customized other baud rate)
Communications Port RS485 (Optional CAN)
Power Supply DC 5V 2A
Power Consumption 2W
Weight 300 grams
Storage Temperature -40 - 85 ℃
Operating environment: -40 - 85 ℃
Support temperature cable length ≤ 200M
Any Custom Size

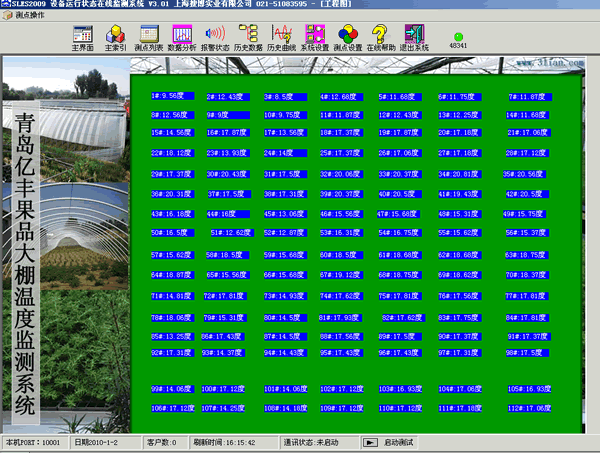

Real-time display map
SY1000 Series LED temperature display instrument can be focused on digital temperature sensor DS1820 series of products for temperature data collection, display, data transfer, so that the temperature circuit detection system for high reliability, low cost and simple wiring structure. Temperature measurement system as the ideal alternative to traditional products, he has a small size, measuring point and more flexible networking, and so on. With wireless devices or GPRS modules and on-site single-bus transfer (1-wire) technology, can be scattered in different parts of the node module SLMT1 way through wired or wireless link with the monitoring center, to reduce energy consumption, the purpose of promoting safety in production .
SY1000 Series LED temperature display instrument can be used to focus the diverse needs of centralized monitoring and control of sites, including: (1) SMT industrial temperature data monitoring (2) Electronic Equipment Factory temperature data monitoring (3) cold storage temperature monitoring (4) Storage Temperature Monitoring (5) The pharmaceutical GMP monitoring system (6) Environmental temperature monitor (7) Telecommunications room monitoring (8) Power Plant / Power Unit (9) Power Plant / Power Unit (10) Process Temperature Monitoring (11) beer production process temperature detection (12) vegetable greenhouses temperature centralized monitoring display system.
In order to facilitate networking project to use, this module provides secondary development of communication protocols to support secondary development. Users simply according to our protocol can use any serial communications software
Technical parameters and characteristics of
Support sensor SLST1 series of temperature sensors, DS1820, DS18B20, DS18S20, DS1822
Display temperature range of -25 ℃ ~ +125 ℃
Display Resolution 0.1 ℃
Temperature measurement accuracy 0.5 ℃
Measuring the speed 850ms / point of all: 2S
Single-bus channels can be accessed by 1-32 points (see ordering and Notes)
Showing 1-100 a real-time display the same screen measuring points, specific points can not display the custom
9600 baud (can be customized other baud rate)
Communications Port RS485 (Optional CAN)
Power Supply DC 5V 2A
Power Consumption 2W
Weight 300 grams
Storage Temperature -40 - 85 ℃
Operating environment: -40 - 85 ℃
Support temperature cable length ≤ 200M
Any Custom Size
Real-time display map
